Torx Sockets For SAE & Metric Fasteners

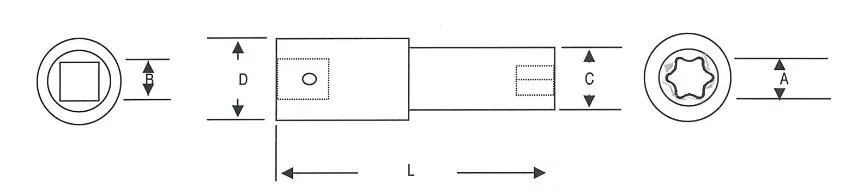

| PART# | SOLID MAGNET | TORX SIZE (A) | SQUARE DRIVE (B) | LENGTH (L) | NOSE DIA. (C) | DRIVE DIA. (D) |
|---|---|---|---|---|---|---|
| TXE-42 | TXME-42 | E-4 | 1/4 | 1 | 5/16 | 1/2 |
| TXE-52 | TXME-52 | E-5 | 1/4 | 1 | 5/16 | 1/2 |
| TXE-62 | TXME-62 | E-6 | 1/4 | 1 | 3/8 | 1/2 |
| TXE-82 | TXME-82 | E-8 | 1/4 | 1 | 3/8 | 1/2 |
| TXE-102 | TXME-102 | E-10 | 1/4 | 1 | 5/8 | 5/8 |
| TXE-122 | TXME-122 | E-12 | 1/4 | 1 | 5/8 | 5/8 |
| TXE-63 | TXME-63 | E-6 | 3/8 | 1 1/4 | 3/4 | 3/4 |
| TXE-73 | TXME-73 | E-7 | 3/8 | 1 1/4 | 3/4 | 3/4 |
| TXE-83 | TXME-83 | E-8 | 3/8 | 1 1/4 | 3/4 | 3/4 |
| TXE-103 | TXME-103 | E-10 | 3/8 | 1 1/4 | 3/4 | 3/4 |
| TXE-123 | TXME-123 | E-12 | 3/8 | 1 1/4 | 3/4 | 3/4 |
| TXE-143 | TXME-143 | E-14 | 3/8 | 1 1/4 | 3/4 | 3/4 |
| TXE-163 | TXME-163 | E-16 | 3/8 | 1 1/4 | 13/16 | 13/16 |
| TXE-84 | TXME-84 | E-8 | 1/2 | 1 1/2 | 1 | 1 |
| TXE-104 | TXME-104 | E-10 | 1/2 | 1 1/2 | 1 | 1 |
| TXE-124 | TXME-124 | E-12 | 1/2 | 1 1/2 | 1 | 1 |
| TXE-144 | TXME-144 | E-14 | 1/2 | 1 1/2 | 1 | 1 |
| TXE-164 | TXME-164 | E-16 | 1/2 | 1 1/2 | 1 | 1 |
| TXE-184 | TXME-184 | E-18 | 1/2 | 1 1/2 | 1 1/4 | 1 1/4 |
| TXE-204 | TXME-204 | E-20 | 1/2 | 1 1/2 | 1 1/4 | 1 1/4 |
| TXE-244 | TXME-244 | E-24 | 1/2 | 1 1/2 | 1 1/4 | 1 1/4 |
| TXE-105 | TXME-105 | E-10 | 5/8 | 1 7/8 | 1 1/8 | 1 1/8 |
| TXE-125 | TXME-125 | E-12 | 5/8 | 1 7/8 | 1 1/8 | 1 1/8 |
| TXE-145 | TXME-145 | E-14 | 5/8 | 1 7/8 | 1 1/4 | 1 1/4 |
| TXE-165 | TXME-165 | E-16 | 5/8 | 1 7/8 | 1 1/4 | 1 1/4 |
| TXE-185 | TXME-185 | E-18 | 5/8 | 2 | 1 1/4 | 1 1/4 |
| TXE-205 | TXME-205 | E-20 | 5/8 | 2 | 1 1/4 | 1 1/4 |
| TXE-245 | TXME-245 | E-24 | 5/8 | 2 | 1 1/2 | 1 1/2 |
| TXE-146 | TXME-146 | E-14 | 3/4 | 2 | 1 1/2 | 1 1/2 |
| TXE-166 | TXME-166 | E-16 | 3/4 | 2 | 1 1/2 | 1 1/2 |
| TXE-186 | TXME-186 | E-18 | 3/4 | 2 | 1 1/2 | 1 1/2 |
| TXE-206 | TXME-206 | E-20 | 3/4 | 2 | 1 1/2 | 1 1/2 |
| TXE-246 | TXME-246 | E-24 | 3/4 | 2 | 1 1/2 | 1 1/2 |
ANY OTHER VARIATIONS ON SIZES AVAILABLE UPON REQUEST
