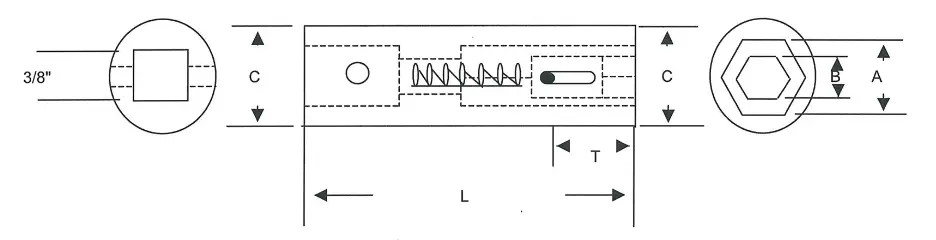

3/8 Drive Spring Loaded Combination Sockets
* DRIVES 2 HEX SIZES WITH 1 SOCKET
** REPLACEMENT INSERTS ARE AVAILABLE SEPERATELY
T = TRAVEL
| PART NUMBER | HEX (A) | HEX (B) | OUTSIDE DIAMETER (C) | LENGTH STANDARD (L) |
|---|---|---|---|---|
| SF-10M8M3-L | 10M | 8M | 3/4" | 3" |
| SF-11M8M3-L | 11M | 8M | 3/4" | 3" |
| SF-12M8M3-L | 12M | 8M | 3/4" | 3" |
| SF-13M10M3-L | 13M | 10M | 13/16" | 3" |
| SF-14M10M3-L | 14M | 10M | 7/8" | 3" |
| SF-15M10M3-L | 15M | 10M | 15/16" | 3" |
| SF-15M13M3-L | 15M | 13M | 15/16" | 3" |
| SF-16M13M3-L | 16M | 13M | 1" | 3" |
| SF-18M13M3-L | 18M | 13M | 1 1/8" | 3" |
| SF-18M15M3-L | 18M | 15M | 1 1/8" | 3" |
| SF-19M13M3-L | 19M | 13M | 1 1/8" | 3" |
| SF-19M15M3-L | 19M | 15M | 1 1/8" | 3" |
| SF-21M15M3-L | 21M | 15M | 1 1/4" | 3" |
| SF-21M17M3-L | 21M | 17M | 1 1/4" | 3" |
THESE SOCKETS ARE AVAILABLE IN ADDITIONAL LENGTHS, SPRING LOADED, SIDEWALL MAGNETS, THIN WALL, DEEP BROACH, ETC

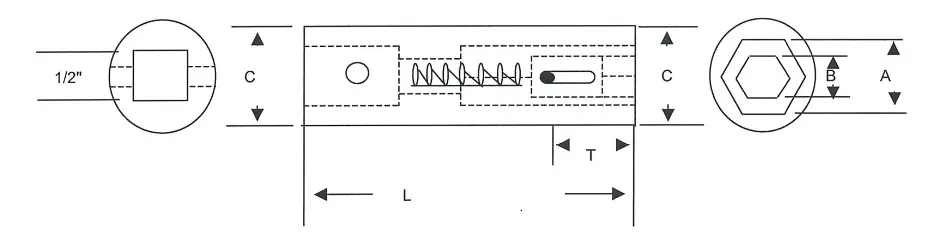

1/2 Drive Spring Loaded Combination Sockets
* DRIVES 2 HEX SIZES WITH 1 SOCKET
** REPLACEMENT INSERTS ARE AVAILABLE SEPERATELY
T = TRAVEL
| PART NUMBER | HEX (A) | HEX (B) | OUTSIDE DIAMETER (C) | LENGTH STANDARD (L) |
|---|---|---|---|---|
| SF-13M10M4-L | 13M | 10M | 15/16" | 3" |
| SF-14M10M4-L | 14M | 10M | 15/16" | 3" |
| SF-15M10M4-L | 15M | 10M | 15/16" | 3" |
| SF-16M13M4-L | 16M | 13M | 1" | 3" |
| SF-17M13M4-L | 17M | 13M | 1 1/8" | 3" |
| SF-18M13M4-L | 18M | 13M | 1 1/8" | 3" |
| SF-18M15M4-L | 18M | 15M | 1 1/8" | 3" |
| SF-19M13M4-L | 19M | 13M | 1 1/8" | 3 1/2" |
| SF-19M15M4-L | 19M | 15M | 1 1/8" | 3 1/2" |
| SF-21M15M4-L | 21M | 15M | 1 1/4" | 3 1/2" |
| SF-21M17M4-L | 21M | 17M | 1 1/4" | 3 1/2" |
| SF-22M18M4-L | 22M | 18M | 1 3/8" | 3 1/2" |
| SF-24M18M4-L | 24M | 18M | 1 1/2" | 3 1/2" |
| SF-24M19M4-L | 24M | 19M | 1 1/2" | 3 1/2" |
THESE SOCKETS ARE AVAILABLE IN ADDITIONAL LENGTHS, SPRING LOADED, SIDEWALL MAGNETS, THIN WALL, DEEP BROACH, ETC
