Extensions

Table of Contents Explanation of Socket Numbers


Male Hex to Male Square Female Square to Male Square

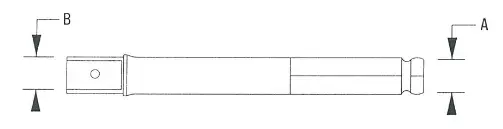

Male Hex to Male Square

PART NUMBERMALE HEX DRIVE
(A)		MALE SQUARE
(B)		STANDARD LENGTH
EX-28-41/41/44"
EX-38-41/43/84"
EX-48-41/41/24"
EX-210-45/161/44"
EX-310-45/163/84"
EX-410-45/161/24"
EX-510-45/165/84"
EX-214-67/161/46"
EX-314-67/163/86"
EX-414-67/161/26"
EX-514-67/165/86"
EX-614-67/163/46"
EX-316-61/23/86"
EX-416-61/21/26"
EX-516-61/25/86"
EX-616-61/23/46"
EX-816-61/216"
EX-320-65/83/86"
EX-420-65/81/26"
EX-520-65/85/86"
EX-620-65/83/46"
EX-820-65/816"
EX-324-63/43/86"
EX-424-63/41/26"
EX-524-63/45/86"
EX-624-63/43/46"
EX-824-63/416"

Wobble Extensions

PART NUMBERMALE HEX DRIVE
(A)		MALE SQUARE
(B)		STANDARD LENGTH
EXW-314-67/163/86"
EXW-414-67/161/26"
EXW-514-67/165/86"
EXW-316-61/23/86"
EXW-416-61/21/26"
EXW-516-61/25/86"
EXW-320-65/83/86"
EXW-420-65/81/26"
EXW-520-65/85/86"

ANY LENGTH EXTENSION MAY BE ORDERED

Male Hex to Male Square Female Square to Male Square

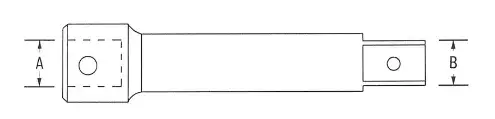

Female Square to Male Square

PART NUMBERFEMALE SQUARE
(A)		MALE SQUARE
(B)		STANDARD LENGTH
EX-22-41/41/44"
EX-32-41/43/84"
EX-42-41/41/24"
EX-23-63/81/46"
EX-33-63/83/86"
EX-43-63/81/26"
EX-53-63/85/86"
EX-63-63/83/46"
EX-24-61/21/46"
EX-34-61/23/86"
EX-44-61/21/26"
EX-54-61/25/86"
EX-64-61/23/46"
EX-84-61/216"
EX-35-65/83/86"
EX-45-65/81/26"
EX-55-65/85/86"
EX-65-65/83/46"
EX-85-65/816"
EX-46-63/41/26"
EX-56-63/45/86"
EX-66-63/43/46"
EX-86-63/416"
EX-126-63/41-1/26"
EX-68-613/46"
EX-88-6116"
EX-128-611-1/26"

Wobble Extensions

PART NUMBERMALE HEX DRIVE
(A)		MALE SQUARE
(B)		STANDARD LENGTH
EXW-33-63/83/86"
EXW-43-63/81/26"
EXW-53-63/85/86"
EXW-34-61/23/86"
EXW-44-61/21/26"
EXW-54-61/25/86"
EXW-35-65/83/86"
EXW-45-65/81/26"
EXW-55-65/85/86"

ANY LENGTH EXTENSION MAY BE ORDERED
