Anti Mar Lug Nut Sockets

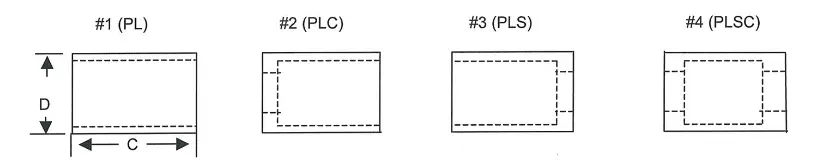

Nylon Anti-Mar Sleeve Styles
#1 PRESS ON SLEEVE
#2 PRESS ON SLEEVE THAT COVERS NOSE OF THE SOCKET
#3 FREE SPINNING SLEEVE
#4 FREE SPINNING SLEEVE THAT ALSO COVERS NOSE OF THE SOCKET
* STANDARD BROACH DEPTH IS 1"
| PART NUMBER | HEX (A) | SQUARE (B) | LENGTH STANDARD (L) | STANDARD (C) | STANDARD (D) |
|---|---|---|---|---|---|
| SF-17MM4-LPLC | 17MM | 1/2" | 3 1/4" | 2" | 1 1/8" |
| SF-19MM4-LPLC | 19MM | 1/2" | 3 1/4" | 2" | 1 1/4" |
| SF-19MM5-LPLC | 19MM | 5/8" | 3 1/2" | 2" | 1 1/4" |
| SF-21MM5-LPLC | 21MM | 5/8" | 3 1/2" | 2" | 1 1/4" |
| SF-19MM6-LPLC | 19MM | 3/4" | 4" | 2 1/2" | 1 1/4" |
| SF-21MM6-LPLC | 21MM | 3/4" | 4" | 2 1/2" | 1 3/8" |
| SF-22MM6-LPLC | 22MM | 3/4" | 4" | 2 1/2" | 1 1/2" |
THESE SOCKETS ARE AVAILABLE IN ADDITIONAL LENGTHS, SPRING LOADED, SIDEWALL MAGNETS, THIN WALL, DEEP BROACH, ETC
