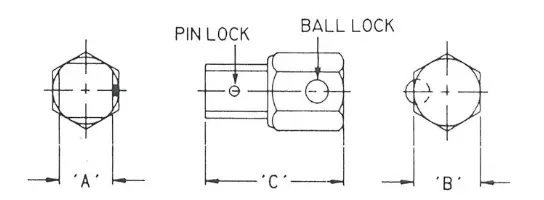

Male Square to Male Hex
| PART # | MALE SQUARE (A) | MALE HEX (B) | O. A. L. (C) | PART # | MALE SQUARE (A) | MALE HEX (B) | O. A. L. (C) |
|---|---|---|---|---|---|---|---|
| A-82 | 1/4 | 1/4 | 25/32 | A-6MM2 | 1/4 | 6MM | 25/32 |
| A-102 | 1/4 | 5/16 | 25/32 | A-8MM2 | 1/4 | 8MM | 25/32 |
| A-122 | 1/4 | 3/8 | 26/32 | A-10MM2 | 1/4 | 10MM | 25/32 |
| A-142 | 1/4 | 7/16 | 25/32 | A-12MM2 | 1/4 | 12MM | 25/32 |
| A-162 | 1/4 | 1/2 | 25/32 | A-13MM3 | 3/8 | 13MM | 15/16 |
| A-182 | 1/4 | 9/16 | 25/32 | A-10MM3 | 3/8 | 10MM | 15/16 |
| A-202 | 1/4 | 5/8 | 25/32 | A-12MM3 | 3/8 | 12MM | 15/16 |
| A-123 | 3/8 | 3/8 | 15/16 | A-13MM3 | 3/8 | 13MM | 15/16 |
| A-143 | 3/8 | 7/16 | 15/16 | A-14MM3 | 3/8 | 14MM | 15/16 |
| A-163 | 3/8 | 1/2 | 15/16 | A-15MM3 | 3/8 | 15MM | 15/16 |
| A-183 | 3/8 | 9/16 | 15/16 | A-16MM3 | 3/8 | 16MM | 15/16 |
| A-203 | 3/8 | 5/8 | 15/16 | A-17MM3 | 3/8 | 17MM | 15/16 |
| A-223 | 3/8 | 11/16 | 15/16 | A-18MM3 | 3/8 | 18MM | 15/16 |
| A-243 | 3/8 | 3/4 | 15/16 | A-19MM3 | 3/8 | 19MM | 15/16 |
| A-263 | 3/8 | 13/16 | 15/16 | A-10MM4 | 1/2 | 10MM | 1-1/8 |
| A-283 | 3/8 | 7/8 | 15/16 | A-12MM4 | 1/2 | 12MM | 1-1/8 |
| A-124 | 1/2 | 3/8 | 1-3/32 | A-13MM4 | 1/2 | 13MM | 1-1/8 |
| A-144 | 1/2 | 7/16 | 1-3/32 | A-14MM4 | 1/2 | 14MM | 1-1/8 |
| A-164 | 1/2 | 1/2 | 1-3/32 | A-15MM4 | 1/2 | 15MM | 1-1/8 |
| A-184 | 1/2 | 9/16 | 1-3/32 | A-16MM4 | 1/2 | 16MM | 1-1/8 |
| A-204 | 1/2 | 5/8 | 1-1/8 | A-17MM4 | 1/2 | 17MM | 1-1/8 |
| A-224 | 1/2 | 11/16 | 1-1/8 | A-18MM4 | 1/2 | 18MM | 1-1/8 |
| A-244 | 1/2 | 3/4 | 1-1/8 | A-19MM4 | 1/2 | 19MM | 1-1/8 |
| A-264 | 1/2 | 13/16 | 1-1/8 | A-21MM4 | 1/2 | 21MM | 1-1/8 |
| A-284 | 1/2 | 7/8 | 1-1/8 | A-22MM4 | 1/2 | 22MM | 1-1/8 |
| A-304 | 1/2 | 15/16 | 1-1/8 | A-24MM4 | 1/2 | 24MM | 1-1/8 |
| A-324 | 1/2 | 1 | 1-1/8 | A-13MM5 | 5/8 | 13MM | 1-1/4 |
| A-344 | 1/2 | 1-1/16 | 1-1/8 | A-15MM5 | 5/8 | 15MM | 1-1/4 |
| A-364 | 1/2 | 1-1/8 | 1-1/8 | A-18MM5 | 5/8 | 18MM | 1-1/4 |
| A-404 | 1/2 | 1-1/4 | 1-1/8 | A-24MM5 | 5/8 | 24MM | 1-1/4 |
| A-206 | 3/4 | 5/8 | 1-1/8 | A-27MM5 | 5/8 | 27MM | 1-1/4 |
| A-246 | 3/4 | 3/4 | 1-1/8 | A-30MM5 | 5/8 | 30MM | 1-1/4 |
| A-286 | 3/4 | 7/8 | 1-1/8 | A-18MM6 | 3/4 | 18MM | 1-3/8 |
| A-326 | 3/4 | 1 | 1-1/8 | A-24MM6 | 3/4 | 24MM | 1-3/8 |
| A-406 | 3/4 | 1-1/4 | 1-1/8 | A-27MM6 | 3/4 | 27MM | 1-3/8 |
| A-486 | 3/4 | 1-1/2 | 1-1/8 | A-30MM6 | 3/4 | 30MM | 1-3/8 |
| A-328 | 1 | 1 | 1-1/2 | A-36MM6 | 3/4 | 36MM | 1-3/8 |
| A-488 | 1 | 1-1/2 | 1-1/2 | A-38MM6 | 3/4 | 38MM | 1-3/8 |
ADDITIONAL SIZES AVAILABLE
Male Hex to Female Hex
| PART # | MALE HEX (A) | FEMALE HEX (B) | O. A. L. (C) | PART # | MALE HEX (A) | FEMALE HEX (B) | O. A. L. (C) |
|---|---|---|---|---|---|---|---|
| A-1012 | 3/8 | 5/16 | 13/16 | A-8M10MM | 10MM | 8MM | 13/16 |
| A-1212 | 3/8 | 3/8 | 7/8 | A-10M10MM | 10MM | 10MM | 7/8 |
| A-1412 | 3/8 | 7/16 | 15/16 | A-12M10MM | 10MM | 12MM | 15/16 |
| A-1612 | 3/8 | 1/2 | 15/16 | A-13M10MM | 10MM | 13MM | 1 |
| A-1812 | 3/8 | 9/16 | 1 | A-15M10MM | 10MM | 15MM | 1 |
| A-2012 | 3/8 | 5/8 | 1 | A-10M13MM | 13MM | 10MM | 15/16 |
| A-1214 | 7/16 | 3/8 | 15/16 | A-12M13MM | 13MM | 12MM | 1 |
| A-1414 | 7/16 | 7/16 | 15/16 | A-13M13MM | 13MM | 13MM | 1 |
| A-1614 | 7/16 | 1/2 | 1 | A-15M13MM | 13MM | 15MM | 1 |
| A-1814 | 7/16 | 9/16 | 1 | A-16M13MM | 13MM | 16MM | 1-1/8 |
| A-2014 | 7/16 | 5/8 | 1 | A-17M13MM | 13MM | 17MM | 1-1/4 |
| A-1216 | 1/2 | 3/8 | 15/16 | A-18M13MM | 13MM | 18MM | 1-1/4 |
| A-1416 | 1/2 | 7/16 | 15/16 | A-19M13MM | 13MM | 19MM | 1-1/4 |
| A-1616 | 1/2 | 1/2 | 1 | A-21M13MM | 13MM | 21MM | 1-1/4 |
| A-1816 | 1/2 | 9/16 | 1 | A-10M15MM | 15MM | 10MM | 15/16 |
| A-2016 | 1/2 | 5/8 | 1-1/8 | A-12M15MM | 15MM | 12MM | 1 |
| A-2216 | 1/2 | 11/16 | 1-1/4 | A-13M15MM | 15MM | 13MM | 1 |
| A-2416 | 1/2 | 3/4 | 1-1/4 | A-15M15MM | 15MM | 15MM | 1 |
| A-1418 | 9/16 | 7/16 | 15/16 | A-16M15MM | 15MM | 16MM | 1-1/8 |
| A-1618 | 9/16 | 1/2 | 1 | A-17M15MM | 15MM | 17MM | 1-1/4 |
| A-1818 | 9/16 | 9/16 | 1 | A-18M15MM | 15MM | 18MM | 1-1/4 |
| A-2018 | 9/16 | 5/8 | 1-1/8 | A-19M15MM | 15MM | 19MM | 1-1/4 |
| A-2218 | 9/16 | 11/16 | 1-1/4 | A-21M15MM | 15MM | 21MM | 1-1/4 |
| A-2418 | 9/16 | 3/4 | 1-1/4 | A-24M15MM | 15MM | 24MM | 1-3/8 |
ADAPTERS CAN BE FURNISHED WITH 12 PT. OR SURFACE DRIVE HEX

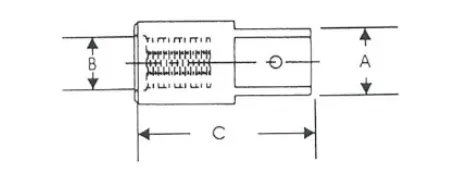

Threaded Adapters
| PART # | MALE SQUARE (A) | FEMALE THREAD (B) | O. A. L. (C) |
|---|---|---|---|
| TA-12-242 | 1/4 | 3/8-24 | 1-1/4 |
| TA-12-243 | 3/8 | 3/8-24 | 1-1/2 |
| TA-12-244 | 1/2 | 3/8-24 | 1-3/4 |
| TA-16-203 | 3/8 | 1/2-20 | 1-3/4 |
| TA-16-204 | 1/2 | 1/2-20 | 2 |
| PART # | MALE (A) | MALE (B) | O. A. L. (C) |
|---|---|---|---|
| TA-12-248 | 1/4 | 3/8-24 | 1-1/2 |
| TA-12-2412 | 3/8 | 3/8-24 | 1-3/4 |
| TA-12-2416 | 1/2 | 3/8-24 | 2 |
| TA-16-2012 | 3/8 | 1/2-20 | 2 |
| TA-16-2016 | 1/2 | 1/2-20 | 2-1/4 |
